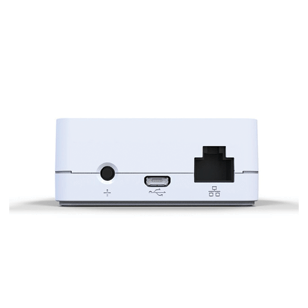

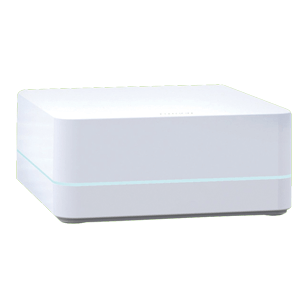

Automation | Lutron Caseta Smart Home Pro

Description

• Regulatory Approvals – cULus Listed – FCC approved. Complies with the limits of a Class B Digital device, pursuant to Part 15 of the FCC rules – IC certified – COFETEL certified
• Power – 5 V- 300 mA – Power Supply (included): 5 V- 550 mA, cable length 6 ft (1.83 m)
• Typical Power Consumption – Lutron Smart Bridge: 1.3 W – Lutron Smart Bridge PRO: 1.3 W –
• Test Conditions: LED on, Ethernet cable plugged in, powered by the 5 V- adapter Environment –
• Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C) – 0% to 90% humidity non-condensing
• Indoor use only
• Communications – All devices must be located within 30 ft (9 m) of Smart Bridge / Smart Bridge.
• PRO – System devices operate on frequencies between 431.0 MHz to 437 MHz – Internet connection required for initial setup and to maintain system date/time and receive periodic firmware updates

Protection

• Tested to withstand electrostatic discharge without damage or memory loss in accordance with IEC 61000-4-2 – Tested to withstand surge voltages without damage or loss of

operation, in accordance with IEEE C62.41-1991

Dimensions- 2.75in x 1.19in
